1. Name of
facilitated equipment:
FREEZE - DRYER
Catalog name: Freeze-dryer ALPHA 1-4 LDplus
Producer: Martin Christ GmbH Germany
Equipment type: facilitated equipment
Date of purchase: 2008

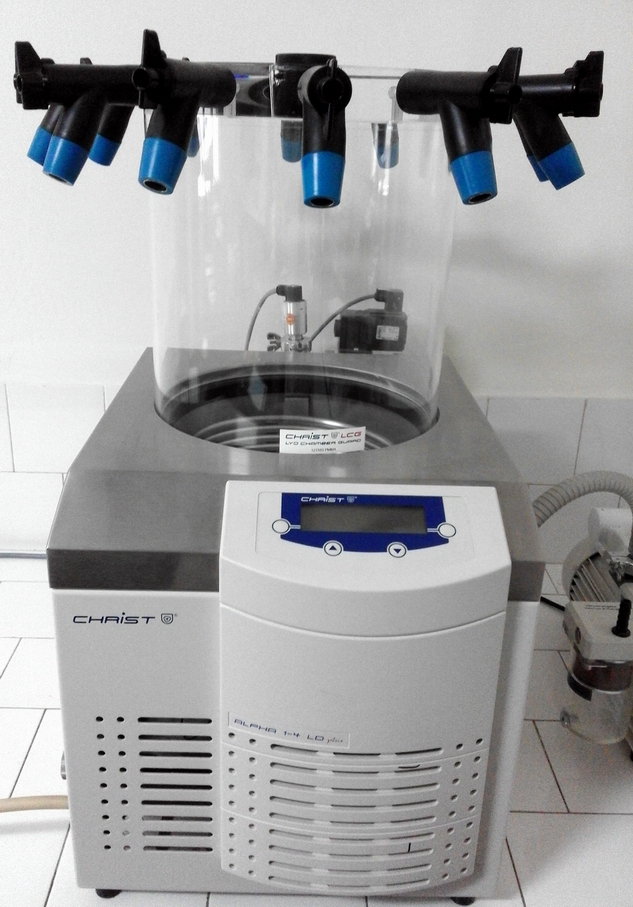

Freeze-dryer ALPHA 1-4 LDplus
2. Domains of activity:
• The freeze-dryer ALPHA 1-4 LDplus is a highperformance universal
laboratory and pre-production unit for freezedrying of solid or liquid
products in ampoules, vials, glass flasks, plasma bottles or dishes.
• It is suitable for drying of e. g. bacteria and virus cultures, blood
plasma, serum fractions, antibodies, sera, vaccines and pharmaceutical
products such as chloramphenicol, streptomycin, vitamins, ferments as well
as plant extracts for biochemical tests.
3. Technical characteristics / performances:
• Ice condenser capacity: max. 4 kg
• Ice condenser performance: 4kg/24 hours
• Ice condenser temperature: -55 oC for drying of aqueous products
• Ice condenser chamber volume: 6.5 l
• 5 unheated shelves, 12 ports
• Display of: vacuum, sample temperature, ice condenser temp, run time
• Vacuum control option
• Attachments for ampoules, round bottomed flasks, wide-necked filter
bottles
• Vacuum pump
4. Contact persons:
Conf. Univ. Dr. Aurora Mocanu, e-mail:
aurora.mocanu@ubbcluj.ro
Asist. Cercet. Dr. Ing, Alexandra Avram, e-mail:
alexandra.avram@ubbcluj.ro
Asist. Cercet. Drd. Chim. Reka Balint, e-mail:
reka.balint@ubbcluj.ro
1. Name of facilitated equipment:
HIGH INTENSITY ULTRASONIC PROCESSOR
Catalog name: VCX 750
Producer: Sonics & Materials, INC
Equipment type: facilitated equipment
Date of purchase: 2008

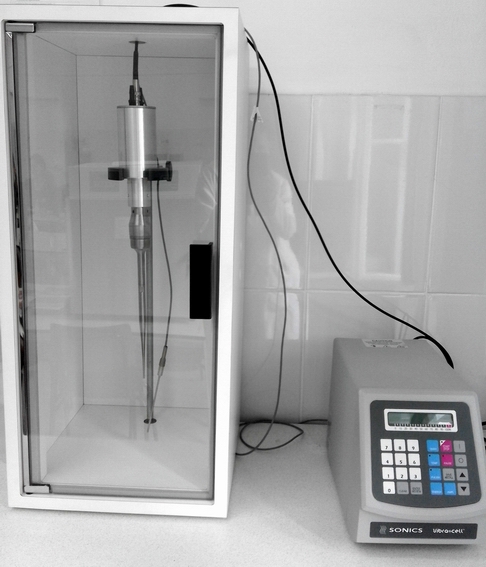

Sonicator VCX 750
2. Domains of activity:
• VCX 750 is a versatile sonicator suitable for various laboratory
application such as: solutions, dispersions, nanoparticles etc. It presents
new generation controls which allows all set and run parameters to be
continuously displayed on the screen, providing instant operating mode
confirmation without process interruption.
• Allows the ultrasonic vibrations at the probe tip to be set to any desired
amplitude. Enables safe treatment of temperature-sensitive samples at high
intensity, and provides mixing by repeatedly allowing the sample to settle
back under the probe after each burst. Both on and off cycles are
independently controllable from 1 second to 59 seconds.
3. Technical characteristics / performances:
• Net power output: 750 W
• Sealed Converter: Piezoelectric lead zirconate titanate crystals (PZT)
• Standard Probe: Tip diameter 13 mm with threaded end and replaceable tip
• Processing capability: 10 ml to 250 ml
• Length: 136 mm
• Weight: 340 g
4. Contact persons:
Conf. Univ. Dr. Aurora Mocanu, e-mail:
aurora.mocanu@ubbcluj.ro
Asist. Cercet. Dr. Ing, Alexandra Avram, e-mail:
alexandra.avram@ubbcluj.ro
Asist. Cercet. Drd. Chim. Reka Balint, e-mail:
reka.balint@ubbcluj.ro
|
|
